From the creamy latte on a busy Monday morning to the shelf-stable milk powder that feeds infants around the world, spray drying is the quiet hero of the dairy industry. This article unpacks how dairy spray dry equipment works, why it matters, and what to look for when choosing a spray dryer for your plant or laboratory. Whether you are an operations manager in a large milk-processing facility or an entrepreneur developing sports-nutrition blends, the following 12-minute read will give you the clarity needed to move forward with confidence.
1. Why Spray Dry at All?
Liquid milk contains roughly 87 % water. Transporting that much water across oceans or even across state lines makes little economic or environmental sense. Spray drying removes the water rapidly while preserving proteins, lactose, vitamins, minerals, and—importantly—the characteristic dairy flavor. The resulting powder is light, stable at room temperature, and immediately soluble when re-hydrated.

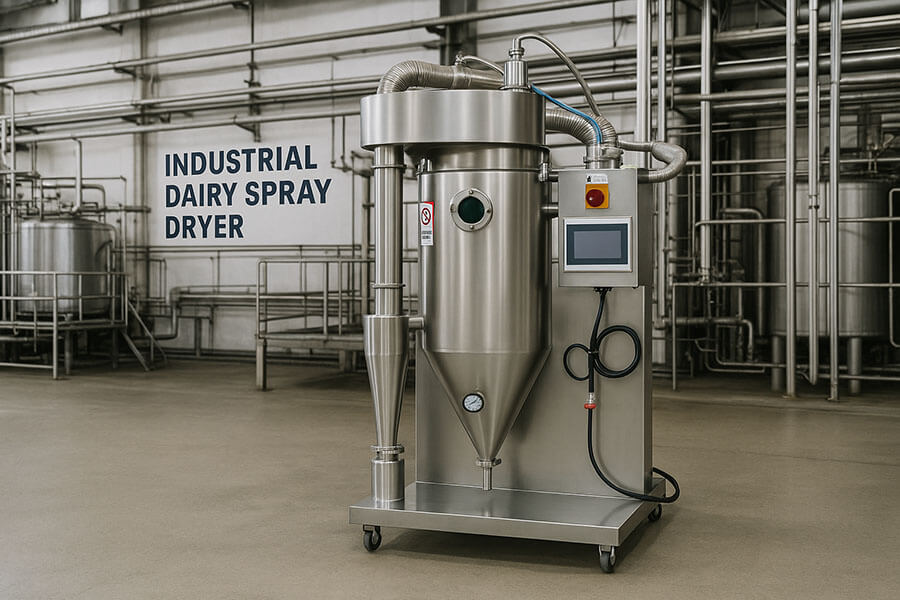

Industrial dairy spray dry equipment with multi-stage system.
Is spray drying the only way to dehydrate milk?
No. Roller drying, freeze drying and traditional evaporation followed by drum drying have all been used. However, spray drying remains the gold standard for large-scale milk powder production because it is faster, more energy-efficient, and gentler on heat-sensitive nutrients compared with drum drying; and far less costly than freeze drying.
2. How Does Dairy Spray Dry Equipment Work?
A dairy spray dryer converts milk concentrate into fine droplets and brings those droplets into contact with heated air. The water evaporates in a matter of seconds, and the dried particles are collected at the bottom of the chamber or in a series of cyclones. Below is a simplified flow sequence:
Step
Process Element
Typical Parameters
1
Pre-concentration by multi-effect evaporator
Solids raised from 9 % to 45 %
2
Atomization (two-fluid nozzle or centrifugal disk)
Droplet size 50 – 180 µm
3
Hot air contact
Inlet 180 – 220 °C; outlet 80 – 90 °C
4
Primary powder separation (cyclone)
Collection efficiency > 99 %
5
Cooling & packaging
Moisture 3 – 4 %
← Swipe Left and Right to View the Table→
For a deep dive into atomization technology—including a comparison between rotary-disk and nozzle systems—see our guide Guide to Milk Powder Spray Dryers.

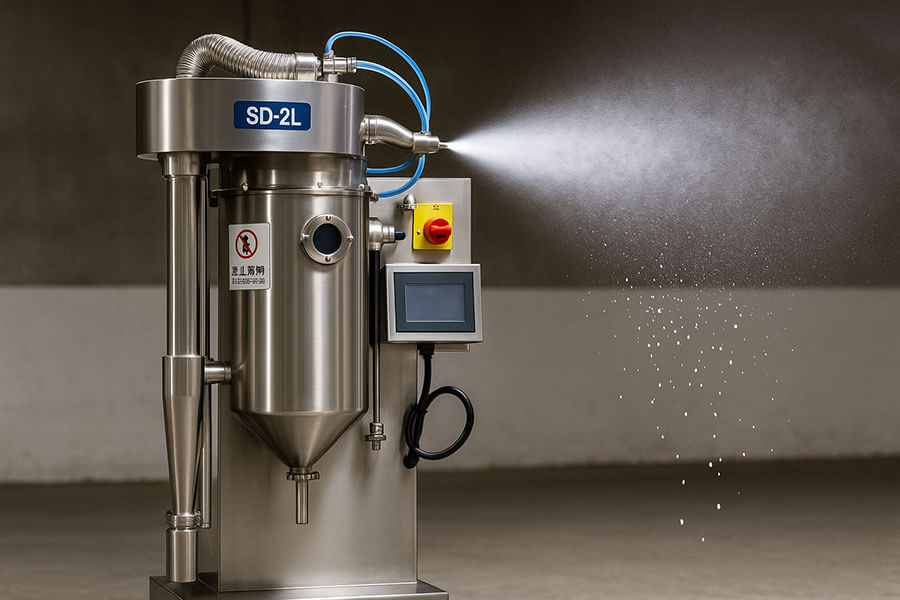

A high-shear two-fluid nozzle turns concentrated milk into a mist of droplets.
3. Choosing the Right Dairy Spray Dryer
Not all spray dryers are created equal. Capacities range from 5 kg/h benchtop units—useful for R&D or boutique cheese makers—to industrial giants producing more than 30 t/h powder. The following questions will narrow your search:
What daily powder output is required over the next five years?
Is energy recovery through exhaust air heat exchangers a must for ESG targets?
Do local regulations demand low NOx burners or full CIP (Clean-in-Place) capability?
According to the International Dairy Federation, global demand for milk powder is projected to grow 3.4 % CAGR through 2030, driven mainly by Asia-Pacific beverage applications.
Do small spray dryers produce the same powder quality as industrial towers?
They can—as long as droplet size distribution and thermal residence time are matched. Modern benchtop spray dryers allow tight control of inlet temperature and airflow, yielding powders with comparable bulk density and solubility index. Scale-up, however, requires validation because wall buildup, air flow patterns and agglomeration behavior change with geometry.
4. Energy Consumption & Sustainability
The lion’s share of operating cost comes from heating the air. Installing exhaust-to-inlet heat recovery, using high-efficiency burners, and optimizing pre-concentration can cut energy usage by as much as 25 %. Some plants now pair spray dryers with biomass boilers or solar-thermal units to push the carbon footprint even lower.
Wondering whether spray drying is more sustainable than alternative dehydration methods? Our comparison article Is a Spray Dryer Better Than a Dehydrator? walks through energy data point by point.
The U.S. Department of Energy reports that incorporating a 10 °C exhaust-air heat-recovery loop in a 15 t/h milk powder plant can save up to 1.2 GWh annually—equivalent to removing 175 passenger cars from the road.
5. Automation & Future-Proofing
Modern dairy spray dryers are packed with sensors—temperature, humidity, particle size, even acoustic emission. These inputs feed AI-based controllers that adjust airflow and feed concentration in real-time, preventing scorch particles that lead to off-flavors. Predictive maintenance algorithms can flag nozzle wear or bag-house clogging days before failure.
According to a study from MIT, “AI is expected to automate 30 % of manufacturing tasks by 2030.” Choosing a control system with open protocols (OPC-UA, MQTT) ensures that today’s dryer can plug into tomorrow’s factory-wide AI layer without expensive retrofits.

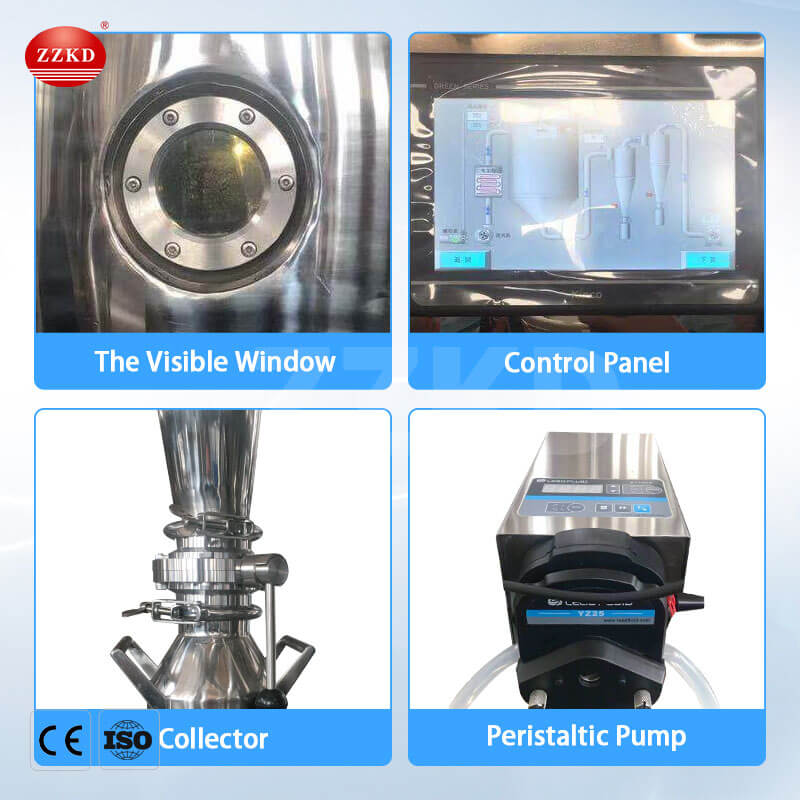

User-friendly HMI showing live particle moisture trend.
Is it difficult to retrofit older spray dryers with modern automation?
Retrofitting is often straightforward if the legacy system already has temperature and pressure transmitters. Adding variable-frequency drives to fans and integrating a PLC with modern I/O modules can unlock most benefits without replacing the drying chamber itself. However, plant downtime and validation in food-grade environments must be factored into project planning.
6. Quick Specification Checklist
Before sending out RFQs, keep this cheat-sheet handy:
For teams new to spray drying food in general, our safety overview Is Spray-Drying Food Safe? lists the top HACCP checkpoints.
7. Conclusion
Dairy spray dry equipment turns perishable liquid milk into an ingredient with a two-year shelf life—fueling everything from barista-quality beverages to humanitarian aid rations. Understanding atomization, energy integration, and automation options empowers decision-makers to select a system that minimizes operating cost while maximizing quality.
If you are ready to explore customized solutions, our engineers at ZZKD Instrument are a click away. We have delivered bench-scale units for universities and 20-meter towers for multinational dairies—each optimized for the customer’s recipe and regulatory landscape.
