Home > Products > Drying Machine Series >

Hot air circulation drying oven

25-400 kg dry capacity
Steam electric heating
Built-in circulating fan
Fully closed structure
Corrosion resistant
Support cutmization

Payment:

Also supports L/C,D/A,D/P,T/T,Western Union,MoneyGram payments for offline orders.

 Description

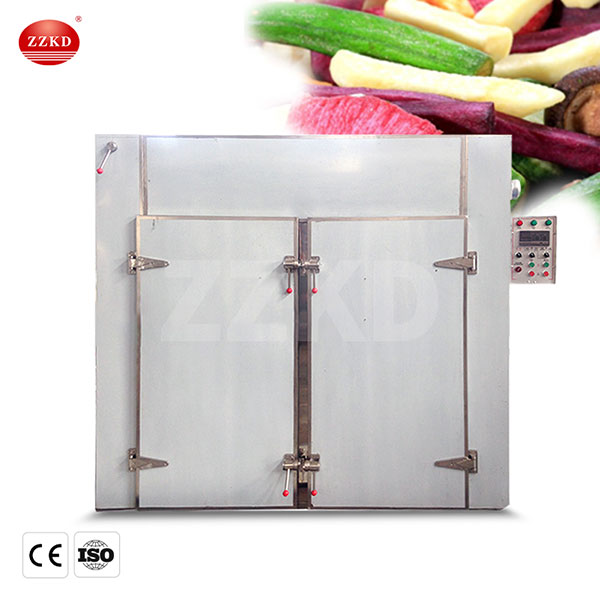

The hot air circulation drying oven adopts 304 stainless steel frame, which is widely used in pharmaceutical, chemical, food and other industries.


Hot air circulation drying oven

Advantage:
25-400 kg dry capacity
Steam electric heating
Built-in circulating fan
Fully closed structure
Corrosion resistant
Support cutmization

Performance characteristics:
Most of the hot air circulates in the box, with high thermal efficiency and energy saving.Using the effect of forced ventilation, the box is equipped with adjustable air distribution panels, the materials are dried evenly, and the heat source can be steam, hot water, electricity, and far infrared, with a wide range of options.The whole machine has low noise and balanced operation.Automatic temperature control, easy installation and maintenance. It has a wide range of applications and can dry all kinds of materials. It is a general-purpose drying equipment.


Hot air circulation drying oven


Applicable materials:
It is suitable for heating curing, drying and dewatering of materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries.Such as raw materials, crude drugs, Chinese herbal medicines, extracts, powders, granules, granules, water pills, packaging bottles, pigments and dyes, dehydrated vegetables, dried fruits, sausages, plastic resins, electrical components, baking paint, etc.


Hot air circulation drying oven for sale

Product Description:
◎The heating source has three modes: steam, electricity and electric steam.
◎Using temperature: steam heating 50-140℃, high 150℃; electric heating 50-350℃;
◎The temperature is automatically controlled and recorded by a recorder;
◎The inner wall of the box is fully welded, and each transition point adopts arc transition without dead angle.
◎The whole machine has good sealing performance, and the unique guide rail sealing device ensures the sealing performance of the whole machine;
◎The air inlet is equipped with an air filter; the moisture outlet is equipped with a medium-efficiency air filter.
◎Double door oven and double door realize mechanical interlocking;
◎All parts in the oven can be quickly disassembled and installed quickly to facilitate cleaning;
◎The control system is equipped with text display and touch screen to choose from;

 Parameter

Model CT- C-0 CT- C- IA CT-C-I CT-C-II CT- C-III CT- C-IV
Drying capacity
(kg)
25 50 100 200 300 400
Heating power
(kw)
9 12 15 30 45 60
Steam heating area(m²) 10 15 20 40 80 100
Blowing rate
(m3/h)
3400 3400 3450 6900 10350 13800
Drying tray
 (pcs)
16 24 48 96 144 192
Length × width × height (m) 1.4x1.2x1.6 1.4x1.2x2.0 2.3x1.2x2.0 2.3x2.2x2.0 2.3x3.22x2.0 4.45x2.2x2.0
Trolley 1 1 2 4 6 8



 FAQ

What is the working principle of a large blast drying oven?
hot air circulation oven adopts a high temperature resistant circulating fan and an automatic temperature control system. The forced hot air heated by an electric heating tube or a steam heat exchanger is circulated in the oven.The whole box adopts a fully enclosed structure, and the hot air box circulates to rationally remove hot and humid air and make up fresh air.

What are the applications of stainless steel drying ovens?
It is suitable for heating, curing, drying and dewatering of pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, and industrial materials. It is widely used in the drying of powders, granules, impact, packaging bottles and other materials in the pharmaceutical industry.
