Home > Products > Stainless Steel Reactor >

SS Reactor

Model: SS-100L
Capacity: 100L
Application: SS Reactors are mainly used in petroleum, chemical, food, pharmaceutical, and other fields, and in processes such as alkylation and condensation
Warehouse in USA | Canada | Spain | Thailand with fast delivery.


Also supports L/C,D/A,D/P,T/T,Western Union,MoneyGram payments for offline orders.


Introduction To Ss Reactor

100L SS Reactor, with a capacity of 100L, is a large stainless steel reactor, which is generally applicable to microbiology laboratories of scientific research institutes and enterprises. The tank body is made of stainless steel SUS316L/SUS304, jacketed for temperature control, equipped with a top-entry mechanical stirring system; aseptic mechanical sealing system, which is an ideal tool for precision fermentation experiments.

ss reactor2

SS Reactor Features

Stainless steel material:

SS Reactor is made of stainless steel, which has the advantages of good corrosion resistance, high temperature resistance, and not easy to rust, and can run stably in chemical reactions.

 ss reactor detail1

Safe and reliable:

SS Reactor adopts a sealed design, which can avoid the leakage of dangerous gas generated during the reaction. At the same time, the advanced automatic control system can automatically monitor and control the reaction process to ensure the safety and stability of the reaction.


SS Reactor can carry out a variety of reactions, such as chemical synthesis, distillation, extraction, crystallization, etc., and has a wide range of application values.

 ss reactor detail2

Easy to clean:

The surface of the reaction kettle is smooth and flat, not easy to accumulate dirt, easy to clean, and kept clean and hygienic.

Stable performance:

Manufactured with advanced technology and process, it has stable performance and can meet the requirements of long-term stable operation.


Parameters such as temperature, pressure, and stirring speed can be adjusted according to the needs of different reactions, and are suitable for different reaction conditions.

Good sealing:

The 100L stainless steel reaction kettle has good sealing performance, which can avoid the leakage of gas and liquid generated during the reaction, and ensure the effective progress of the reaction.

Long life:

Using high-quality materials and manufacturing processes, it has a long service life and can meet the long-term needs of users.

ss reactor detail3

Application Of SS Reactor

Chemical synthesis

SS Reactor can be used in chemical synthesis reactions, such as synthesis of organic matter, polymers, etc. In the chemical synthesis reaction, the stainless steel reactor has the advantages of good corrosion resistance, high temperature resistance, and not easy to rust, which can ensure the stability and safety of the reaction process.

Pharmaceutical industry:

SS Reactor can be used in drug synthesis, refining, separation, drying and other processes in the pharmaceutical industry. The stainless steel reaction kettle has the advantages of good sealing performance and easy cleaning, which can meet the strict requirements of the reactor in pharmaceutical production.

Food industry:

SS Reactor can be used in food processing, fermentation, brewing and other processes in the food industry. The stainless steel reaction kettle has the advantages of good corrosion resistance and easy cleaning, which can ensure the hygiene and safety of food processing.

Chemical industry:

SS Reactor can be used in chemical reaction, catalytic reaction, distillation, extraction and other processes in the chemical industry. The stainless steel reaction kettle has the advantages of good corrosion resistance, stable performance, easy adjustment, etc., and can adapt to different reaction conditions and needs.

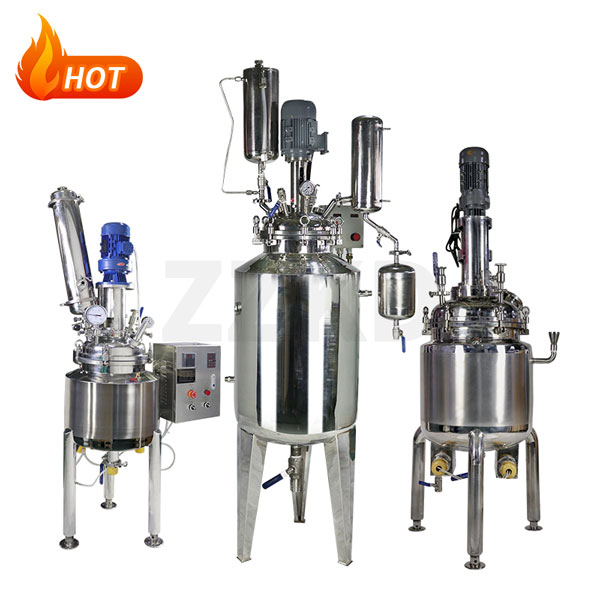

ss reactor4

Ss Reactor Operating Procedures


Check the sealing performance of the ss reactor, clean the inside of the reactor, check the accessories, prepare the reaction materials, etc.


Add the reaction materials into the stainless steel reaction kettle, and pay attention to controlling the feeding speed and feeding amount according to the reaction equation and experimental requirements.


Turn on the stirrer of the reaction kettle, set the stirring speed and time according to the reaction requirements, and ensure that the reaction materials are fully mixed.

To heat or cool:

According to the reaction requirements, control the heating or cooling system of the SS reactor to make the reaction materials reach the predetermined temperature.


According to the reaction equation and experimental requirements, control the reaction conditions of ss reactor, such as reaction time, reaction temperature, reaction pressure, etc.

Complete the reaction:

After the reaction is over, turn off the heating or cooling system, stop the agitator, and unload the reaction product.


Clean the inside of the ss reactor to ensure that there is no residue in the reactor.


Model SS-100L
Capacity 100L
Jacket capacity 30L
Voltage 220V/50HZ
Working pressure  Ordinary pressure
temperature 0-250℃
Power 400W
Frequency 0-500 r/min
Maximum torque 273 N/CM
Heating mode Sandwich oil bath
Material 304/316
Sealing mode Mechanical seal


Q: SS Reactor leaked.

A: When feeding materials, for normal pressure reaction, if the vent pipe is not opened, when the pump is used to transport the liquid material into the kettle, positive pressure will easily form in the kettle, which will easily cause the joint of the material pipe to burst, and the leakage of the material will cause personal injury. Damaged burns somethin. When unloading, if the material in the kettle is unloaded before it is cooled to the specified temperature, the material at a higher temperature is easy to deteriorate and it is easy to cause the material to splash and burn the operator.

Q: SS Reactor heats up too fast.

A: During the operation of the stainless steel reactor, if the temperature rises relatively quickly, the cooling rate is low, and the condensation effect is poor, there will be a phenomenon of ceramic explosion, so pay attention to temperature changes during operation to avoid accidents.

Q: SS Reactor is not feeding properly.

A: In the process of operation, improper feeding will also cause damage to the equipment. For example, if the feeding speed is too fast, the feeding ratio is out of control or the feeding sequence is wrong, it will affect the local thermal decomposition of the material, causing the material to react quickly and generate a large amount of harmful gas. Blast something.
