What is Closed Loop vs Open Loop Extraction?

In the field of botanical extraction, choosing the right extraction system is crucial for efficiency, safety, and quality. Among the many options available, closed loop and open loop extraction systems are two of the most discussed. Understanding the differences between these two methods can significantly impact the outcome of your extraction process. So, what sets them apart?

Closed Loop Extraction Systems

Open Loop Extraction Systems

Open loop extraction systems are often considered the more straightforward of the two. They operate by allowing the solvent to come into contact with the plant material in an open environment. Here's a step-by-step breakdown of how an open loop system typically works:

1. Solvent Introduction: The solvent, often a hydrocarbon like butane or propane, is introduced to the plant material in an open container.

2. Extraction Process: The solvent dissolves the desired compounds (such as cannabinoids and terpenes) from the plant material.

3. Separation: The mixture is then filtered to separate the plant material from the solvent-extracted solution.

4. Evaporation: The solvent is evaporated, leaving behind the concentrated extract.

One of the main advantages of open loop extraction systems is their simplicity. They are generally easier to set up and operate, making them accessible for small-scale or hobbyist extractors. However, this simplicity comes with significant drawbacks.

Safety Concerns: Open loop systems pose serious safety risks due to the exposure of flammable solvents to the open air. This can lead to dangerous situations, including fires and explosions.

Solvent Loss: These systems are also less efficient in solvent recovery. A significant amount of solvent is lost during the evaporation process, which not only increases operational costs but also has environmental implications.

Quality Control: Maintaining consistent quality can be challenging with open loop systems. The open environment allows for potential contamination and variability in extraction conditions.

Closed Loop Extraction Systems

In contrast, closed loop extraction systems are designed to operate in a sealed environment. This method is widely regarded as the gold standard in the industry due to its efficiency, safety, and superior quality control. Here’s how a typical closed loop system works:

1. Loading the Material: Plant material is loaded into an extraction vessel within a sealed system.

2. Solvent Circulation: The solvent is circulated through the plant material in a closed loop, dissolving the desired compounds.

3. Separation and Recovery: The solution is then filtered, and the solvent is recovered and recycled back into the system for reuse.

4. Evaporation and Collection: The remaining solvent is evaporated from the extract, which is then collected in its concentrated form.

Safety: Closed loop systems are inherently safer because they prevent the solvent from coming into contact with the open air. This significantly reduces the risk of fire or explosion.

Efficiency: The closed loop design allows for nearly complete solvent recovery, making the process more cost-effective and environmentally friendly.

Quality: These systems provide a controlled environment, ensuring consistent extraction conditions and high-quality results. Contaminants are minimized, and the purity of the extract is maximized.

5LB Closed Loop Extraction Systems

Small Closed Loop Extraction System

For those looking to maximize safety, efficiency, and quality on a smaller scale, the small closed loop extraction system is an excellent choice. These systems are designed to offer the benefits of a full-scale closed loop system but tailored for smaller operations.

Scalability: Small closed loop systems are perfect for businesses or individuals who are just starting out or have limited space. They provide a scalable solution that can grow with your needs.

Cost-Effective: While the initial investment might be higher than an open loop system, the long-term savings from solvent recovery and reduced waste make it a cost-effective option.

Ease of Use: Advances in technology have made small closed loop systems more user-friendly. Many come with automated controls and safety features that simplify the extraction process.

Quality Assurance: Just like their larger counterparts, small closed loop systems offer superior quality control. This ensures that even small batches maintain the highest standards of purity and consistency.

Have you ever wondered how to maintain quality and consistency in small-scale extraction?

A small closed loop extraction system is the answer. With its controlled environment and efficient solvent recovery, it ensures that every batch meets the highest standards.

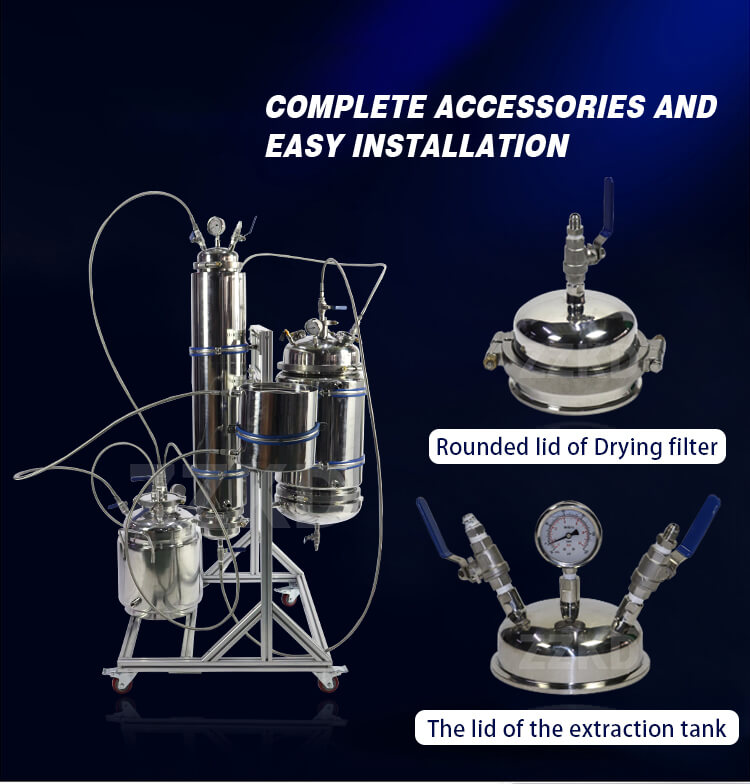

Closed Loop Extraction Systems Detail

Choosing the Right System

Deciding between a closed loop and an open loop extraction system depends on several factors, including your budget, safety considerations, and quality requirements.

Budget: While open loop systems might seem attractive due to their lower upfront costs, the long-term savings and superior results offered by closed loop systems often justify the higher initial investment.

Safety: If safety is a priority (and it should be), closed loop systems are the clear choice. The risk of fire or explosion is drastically reduced, providing peace of mind.

Quality: For those aiming to produce high-quality extracts consistently, the controlled environment of a closed loop system is invaluable.

Scale: Consider the scale of your operation. Small closed loop extraction systems are ideal for those who need a compact, efficient solution without compromising on quality.

Innovations in Extraction Technology

The extraction industry is continually evolving, with new technologies and innovations making the process more efficient and user-friendly. One notable advancement is the integration of automation and digital controls in small closed loop extraction systems.

Automation: Automated systems can precisely control the extraction parameters, ensuring optimal conditions for each batch. This reduces human error and improves consistency.

Digital Controls: Modern small closed loop extraction systems often come with digital interfaces that allow for easy monitoring and adjustment of the process. This user-friendly approach makes high-quality extraction accessible to more people.

Safety Features: Advances in safety technology have also been significant. Many systems now include features like automatic shut-off valves, pressure sensors, and emergency release mechanisms to enhance safety further.

What features do you think are most important in a small closed loop extraction system?

For many, automation and safety features top the list, as they not only improve efficiency but also provide critical safeguards during the extraction process.

Closed Loop Extraction Systems Information

Environmental Impact

Another crucial consideration is the environmental impact of your extraction method. Closed loop systems are far more eco-friendly than open loop systems. By recycling solvents, they reduce the amount of waste and minimize environmental contamination.

Solvent Recovery: Closed loop systems can recover up to 99% of the solvent used, drastically reducing the need for fresh solvent and minimizing waste.

Waste Reduction: The controlled environment of a closed loop system ensures that waste products are contained and properly disposed of, reducing the environmental footprint.

Are you concerned about the environmental impact of your extraction process?

If so, investing in a closed loop system is a responsible choice. It not only saves money in the long run but also supports sustainable practices.

While both closed loop and open loop extraction systems have their place in the extraction industry, closed loop systems offer significant advantages in terms of safety, efficiency, and quality. For small-scale operations, a small closed loop extraction system is an ideal solution, providing all the benefits of larger systems but in a more compact and cost-effective package.

When choosing an extraction system, consider your specific needs and priorities. Whether it’s budget, safety, quality, or environmental impact, understanding the differences between closed loop and open loop systems will help you make an informed decision. Embrace the future of extraction technology and see how a small closed loop extraction system can revolutionize your process.
