EXRE Rotary Evaporators

Temp range:RT-399 degree centigradeoil bath.
Temp range:RT-99 degree centigrade water bath.
We can offer you 0.25L,0.5L, 1L,2L,3L,5L, 10L, 20L, 50L.


Payment:

Also supports L/C,D/A,D/P,T/T,Western Union,MoneyGram payments for offline orders.

 Introduction

Vacuum Distillation Rotary Evaporator with Vacuum Pump is heated by water/oil bath under negative pressure condition, while forming a thin film in the inner of evaporating flask by continuous rotation, evaporate highly, then condense and recycle the solvent simultaneously. The apparatus are particularly suitable for the heat-sensitivity material's condensation, crystallization, separation, recovery and so on.

 Note

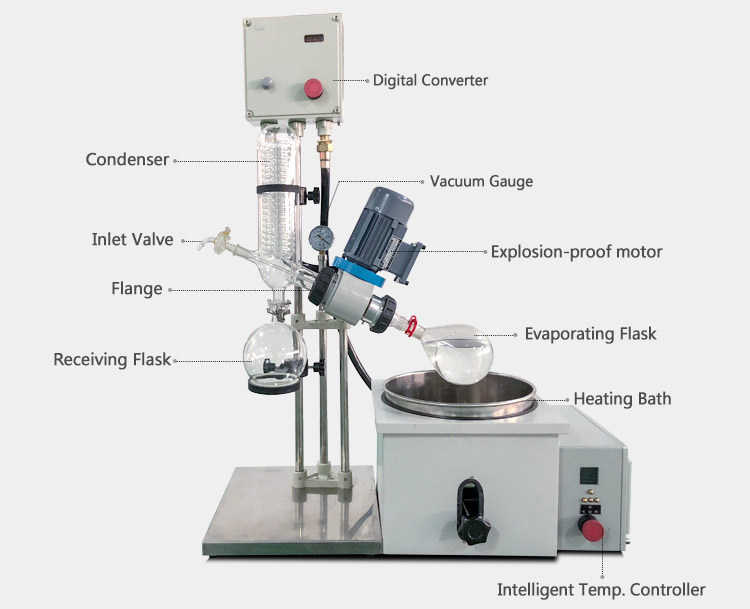

Motor
1.International copper wire
2. Continuous operation and stable
3. CE Approved.
Digital Converter
Digital display and control the speed of the rotary flask.
Accurate and easy operation.
Condenser
The inner tube is spiral which increases the length of the tube and makes cooling area larger. So the condensation would be more efficient.
High Borosilicate Glass
Temp Range -100℃~400℃,high acid and alkali resistant
High temperature resistant, high strengh and hardness
Feed rapidly, no residual and easily clean.
Free Lift Heating Bath
You can adjust the height according to your requirements. Easy and convenient.

 Technical Index

Model EXRE-1002 EXRE-2002 EXRE-5002
Evaporating Flask(L) 10 20 50
Receiving Flask(L) 5 10 20
Rotating Motor(W) 180 370
Rotating Speed(R/min) 0-120 0-90
Evaporation Speed(L/H, H2O) >3 >5 >9
Condenser Cooling Surface(sq.m.) 0.57 1 1.5
Vacuum Degree 0.098Mpa
Sealing Mode PTFE Sealing System
Water Bath Configuration Water Bath Lifting  or Electric Hoist
Water(Oil) Bath Power(kw) 3 5 7|9
Temperature Control Range 0-99(250)℃
Temp Fluctuation/Resolution ±1/1℃
Condenser Vertical Double Condenser
Voltage (V/Hz) 220V  50/60 220V 50/60 | 380  50/60
Note  Customized configuration is available.

 Packaging

1. We package these glass equipment in good and non fumigation standard plywood case.
2. It will be decided according to your quantity. Normally we will choose International Express,  Air and sea.
3. Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term will be discussed during the deal.
4. In 5 working days after payment confirmed, customized products need 10~15 working days.
