DZF Drying Machine

1. 110V/60Hz can be customized.
2. Stainless steel tray can be customized.
3. Any customized configuration is welcome.


Payment:

Also supports L/C,D/A,D/P,T/T,Western Union,MoneyGram payments for offline orders.

 Introduction

It applies in drying, sterilizing and heat treatment of articles under the relative vacuum condition in laboratories of industrial mining enterprise, colleges and universities, scientific research institutes and medicine and health units, etc.

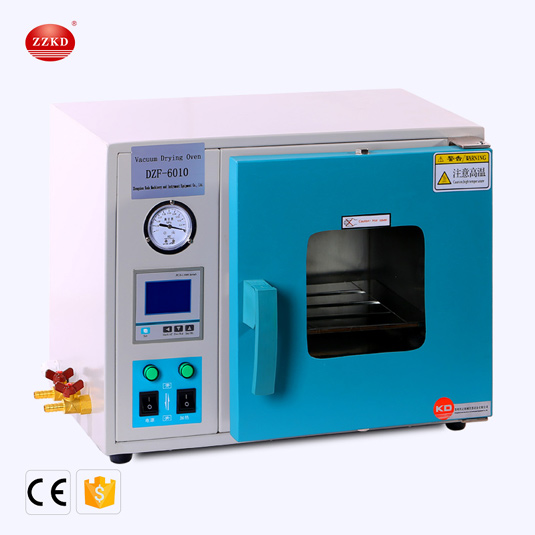

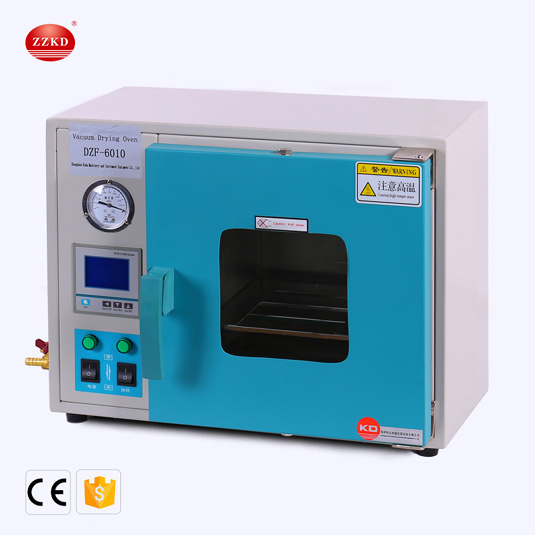

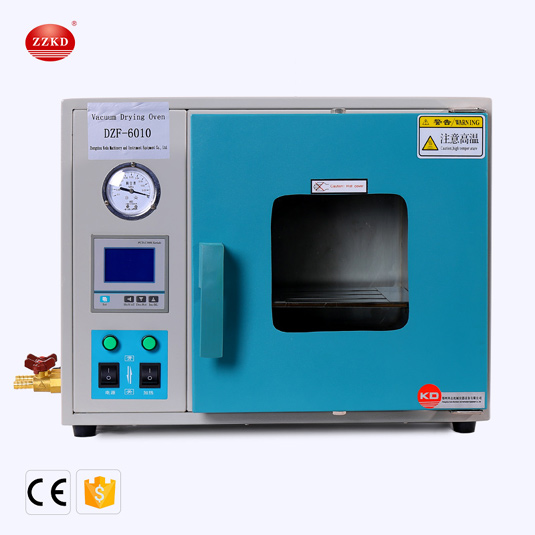

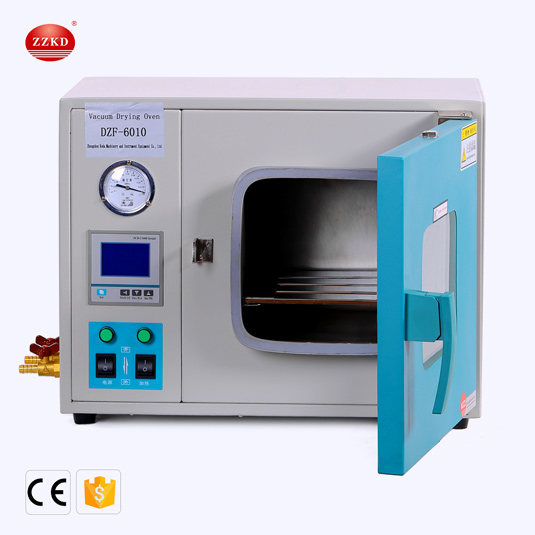

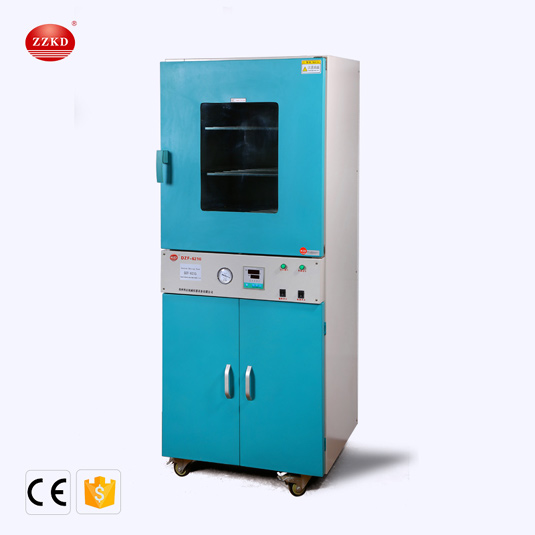

DZF Series Vacuum drying ovens are some of the most rugged vacuum ovens available today. Each oven features overtemperature protection and an easy-to-read vacuum gauge. The doors on these units have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life. It can handle heat-sensitive or oxygen-sensitive etc. substances and materials.

Tips:
1. 110V/60Hz can be customized.
2. Stainless steel tray can be customized.
3. Any customized configuration is welcome.

 Note

1.The working room adopts high quality and imported stainless steel or cold-rolled steel plate with corrosion resistant. It is durable.
2.The air-tightness of the chamber door is adjustable, with a wholly-shaped silicon rubber door sealing loop; so as to guarantee in-chamber high vacuum.
Sinoart enterprise content manager system | Sinoart CMS
3.Double-layer tempering bulletproof glass door is easy to observe the articles in the working room.
4.The rectangular working room makes full use of effective volume.
Sinoart enterprise content manager system | Sinoart CMS
5.Microcomputer control DD (Digital display) instrument with functions of high precision on temperature control, over-temperature alarm and automatic cutout.
Vacuum Gauge
Stable, Precise, Sensitive
Antimagnetic, Shockproof, Anticorrosion
Firm structure, easy sealing and installation
Double Layer Explosion-proof Glass
Good heat insulation effect, prevent heat loss
High strength, keep the shape good
Silicon Rubber Strip
Tight sealing, good elasticity, non-deformation, high temperature resistance and non-aging to ensure the temperature accurate and table.

 Technical Index

Model

DZF-6010

DZF-6020

DZF-6050

DZF-6090

DZF-6210

DZF-6500

Power Supply

220V/50HZ

Shell Material

Spray-paint Anti-corrosion

Liner Material

304 Stainless Steel

Temp. Range

RT+10~200°C

Max. Vacuum
Degree

0.098 Mpa

Temp. Stability

±1.0°C

Temp. Analysis

0.1°C

Working Temp.

+5~40°C

Input Power (W)

400

800

1400

2000

2400

2800

Chamber
Capacity (L)

8

25

55

90

215

215

Inner
Dimension (W*D*H,mm)

200*200*200

300*280*300

410*400*340

450*450*450

560*600*640

630*810*845

Overall
Dimension (W*D*H,mm)

600*400*430

620*500*480

720*570*540

770*620*710

730*730*1800

790*1030*1850

Shelves (Pcs)

1

2

3

4


 Packaging

1. We package these glass equipment in good and non fumigation standard plywood case.
2. It will be decided according to your quantity. Normally we will choose International Express,  Air and sea.
3. Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term will be discussed during the deal.
4. In 5 working days after payment confirmed, customized products need 10~15 working days.
