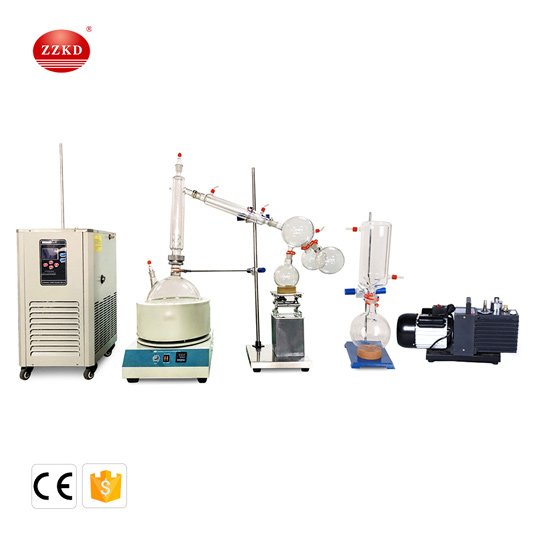

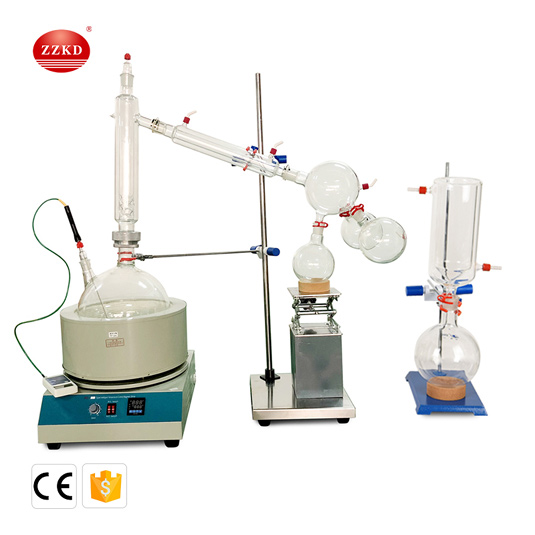

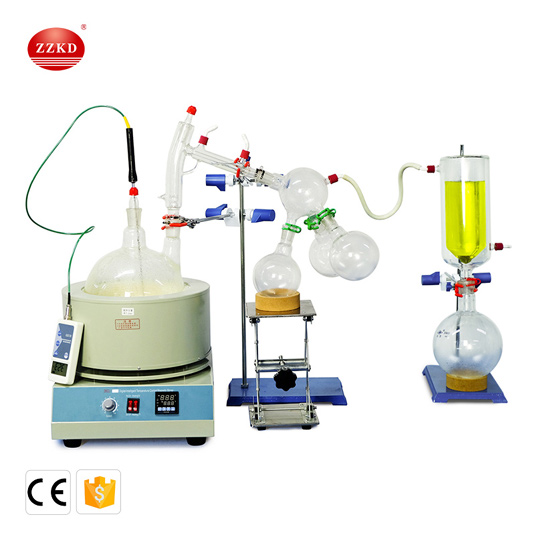

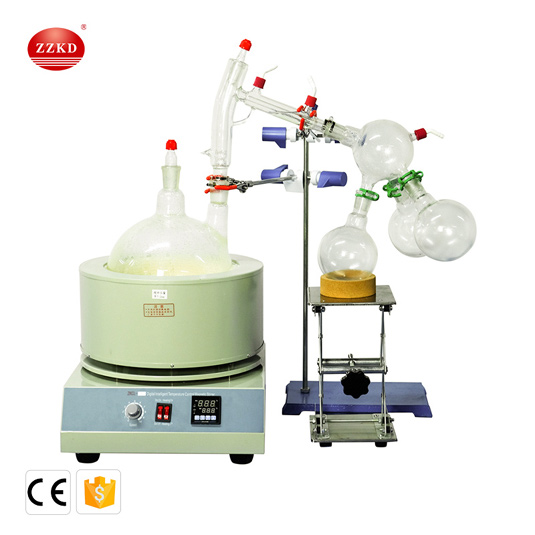

ZKCL Short Path Distillation

Ancillary equipment:
Refrigerated circulator
2XZ Rotary vane vacuum pump
Magnetic Heating mantle


Payment:

Also supports L/C,D/A,D/P,T/T,Western Union,MoneyGram payments for offline orders.

 Introduction

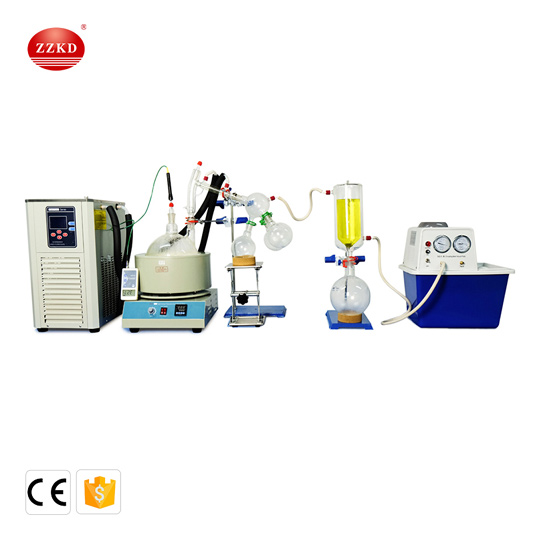

This Glass Distillation Equipment is widely used in Pharmaceutical industry, laboratory fractinal distillation and purification, food&beverage industries, essemtial oils and so on. It's usually used with the following devices together.

Ancillary equipment:
Refrigerated circulator: condensation and reducing waste of materials.
2XZ Rotary vane vacuum pump: provide vacuum source.
Magnetic Heating mantle: energy saving heating and stirring.

 Note

Features:
1. High quality and heavy duty borosilicate 3.3 glass for durability.
2. Vacuum-jacketed distillation adapter, with 4 Vigreux stages.
3. Heating mantle 2L with magnetic stirring function, available in 220V.
4. Detachable plastic 3/8”(10mm) hose barbs for maximized safety during operation.
5. Carefully designed 3-way cow adapter accommodates up to 3 pcs of 500mL flasks.
6. TGCT-01 cold trap protects the vacuum pump from contamination and damage of vapors.
7. Flexible choice of vacuum pumps and heater/chillers.
2XZ-2 Rotary Vane Vacuum Pump
Flexible choice of rotary vane vacuum oil pump.
Refrigerated Circulator
Flexible choice of desktop high efficiency heater/chillers.
Vacuum pump
Flexible choice desktop vacuum device.

 Technical Index

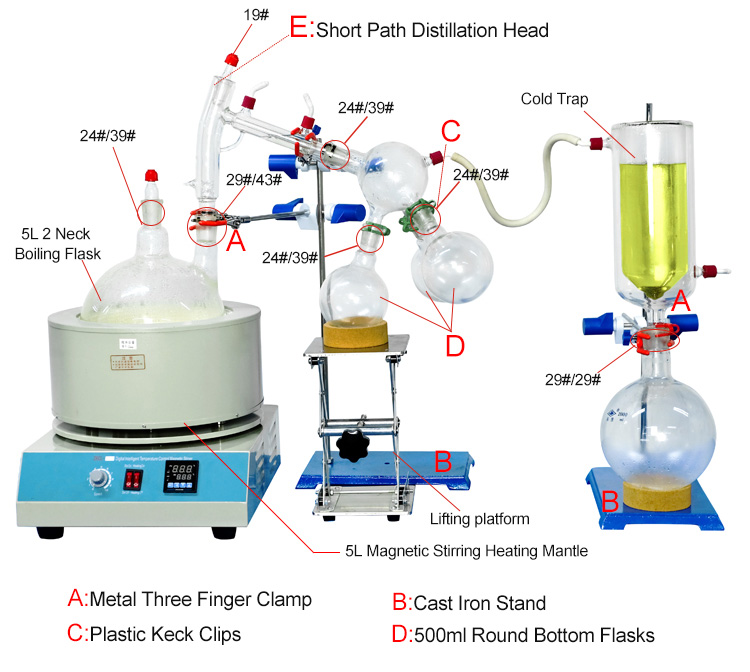

Parts Name Parts number
Heating Mantle 1
2 Neck Boiling Flask 1
Short Path Distillation Head 1
Cow Receiver 1
Round Bottom Flasks 3
Plastic Keck Clips 7
Cast Iron Stand 1
Metal Three Finger Clamp 1

 Packaging

1. We package these glass equipment in good and non fumigation standard plywood case.
2. It will be decided according to your quantity. Normally we will choose International Express,  Air and sea.
3. Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term will be discussed during the deal.
4. In 5 working days after payment confirmed, customized products need 10~15 working days.
